Mogami 2930 2-Channel XLR Multicore Cable Neutrik 3-164ft – Assembled in Tokyo

Description

MOGAMI 2930 two-channel balanced analog snake cable with genuine Neutrik XLR connectors.

Made with new components and individually assembled and tested in Tokyo.

Built for practical setup and routing, with quick channel identification, selectable fan-out lengths, and reinforced breakout sections.

==================================

 SELECT YOUR OPTIONS ABOVE

• Cable length: 3–164 ft

• Fan-out length: Select from the available options

• Connector configuration: 2 × XLR female to 2 × XLR male

• Cable color: Black

• Quantity: 1 two-channel snake cable assembly



==================================

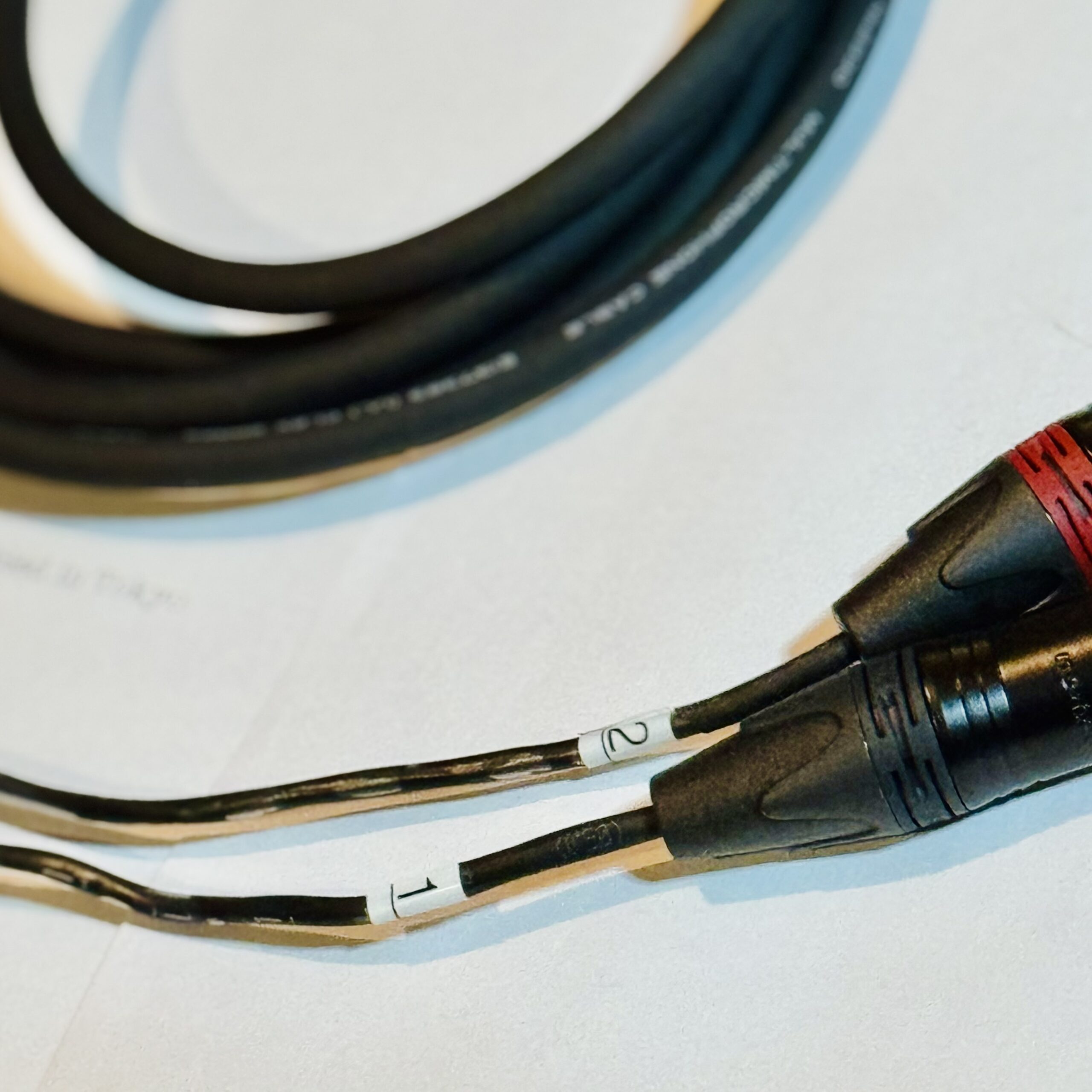

 CHANNEL IDENTIFICATION



Every channel is clearly identified at both ends by both color and number.



• CH 1 — Black ring(Neutrik XXR0)

• CH 2 — Red ring (Neutrik XXR2)



The same color coding is used at both ends of the cable.

A clearly printed channel number is also placed near every connector.

In addition, MOGAMI’s original channel number remains visible through the clear reinforcing sleeve.



This gives each channel three visible identification cues:

• Neutrik color ring

• Printed channel label near the connector

• Original MOGAMI core marking

This makes patching, tracing, and troubleshooting easier, especially behind racks or around dense stage and studio wiring.



==================================

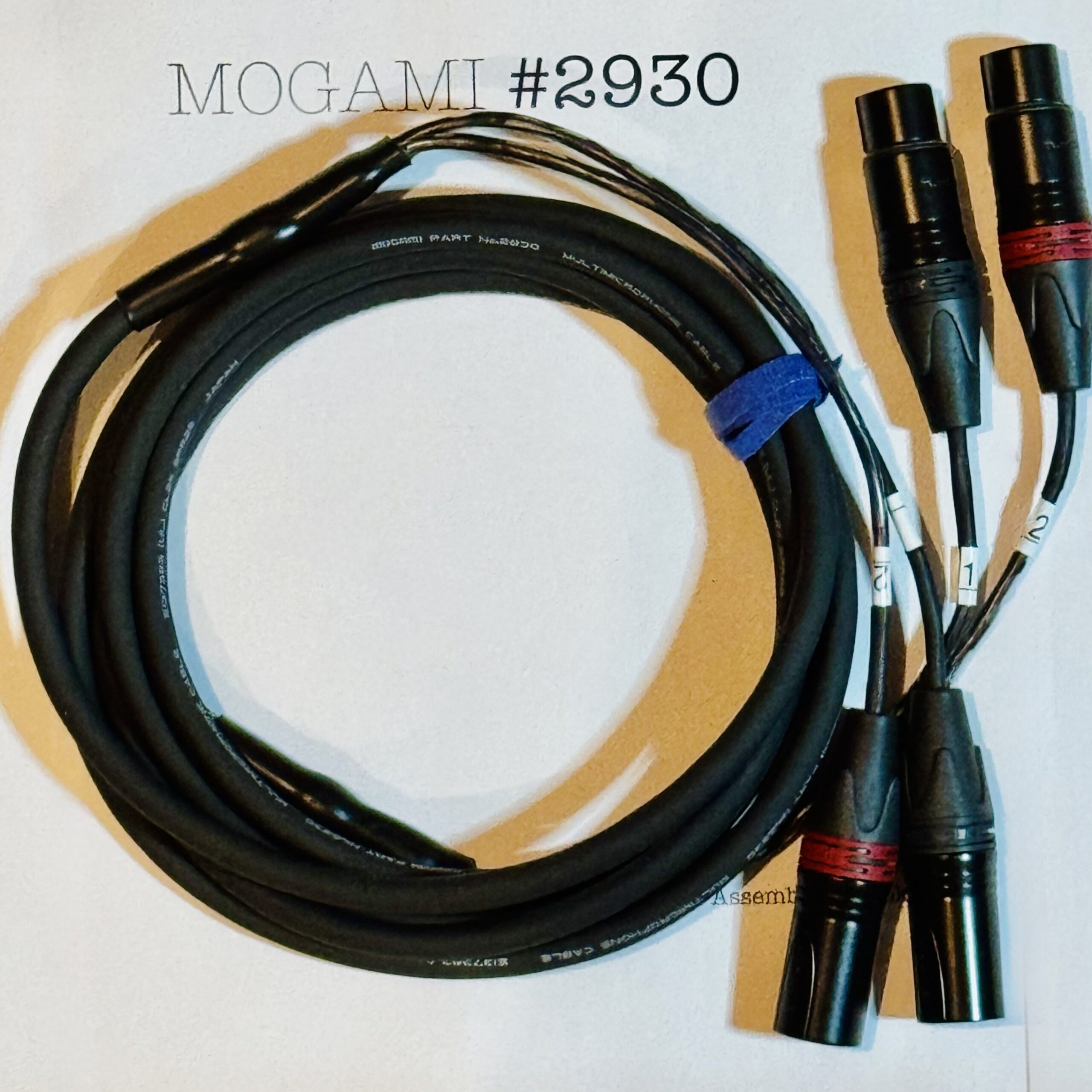

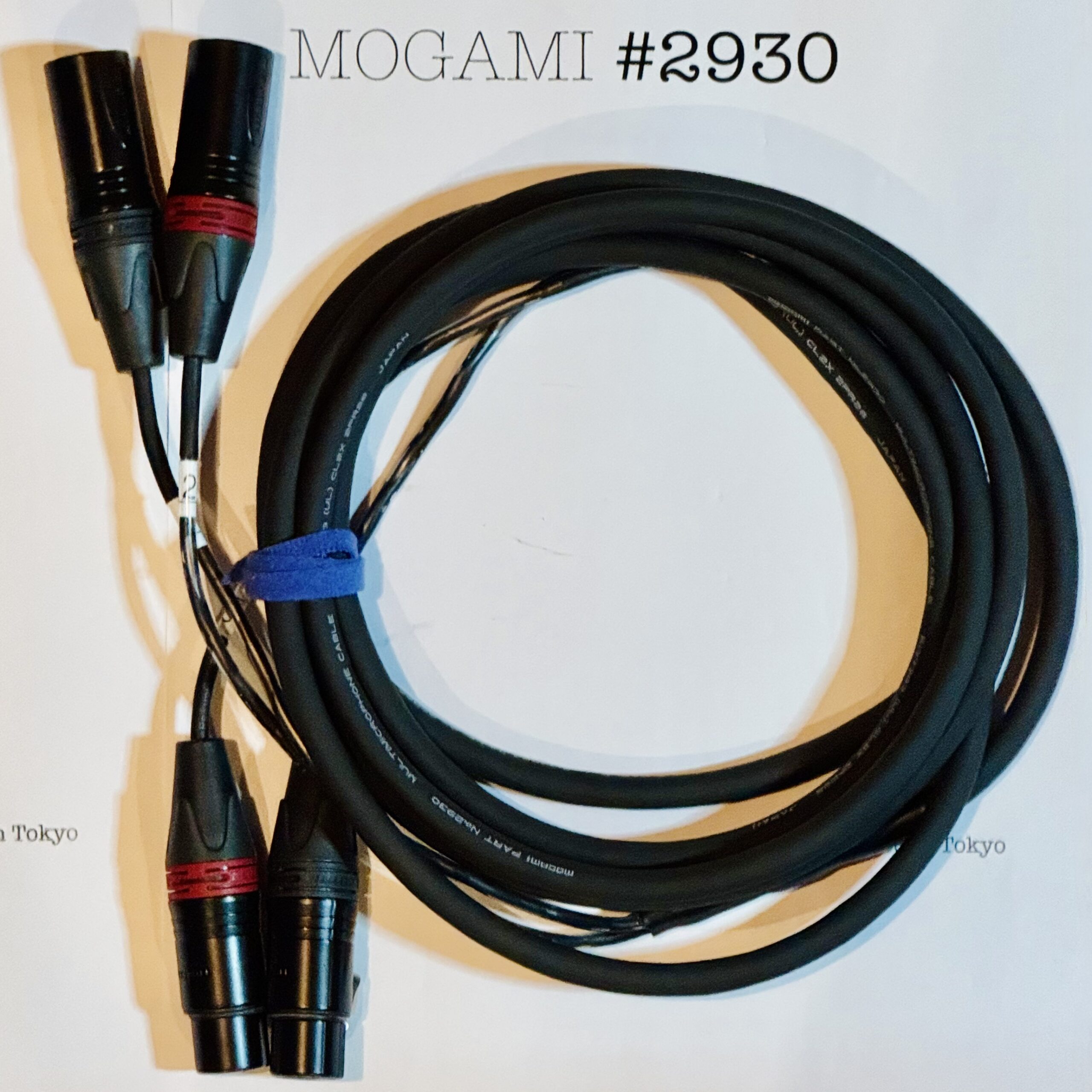

REINFORCED FAN-OUT CONSTRUCTION



Each individual fan-out lead is covered along its full exposed length with clear 3:1 adhesive-lined dual-wall heat-shrink tubing.

This reinforces the cable’s mechanical durability while keeping the original MOGAMI channel markings clearly visible.

Each main breakout point is reinforced with two layers of 3:1 adhesive-lined dual-wall heat-shrink tubing.

A reusable hook-and-loop cable tie is installed near each breakout. The tie can be repositioned to control where the two leads separate and helps keep direct pulling force away from the reinforced split.

The fan-out length can be selected from the available options above.



==================================

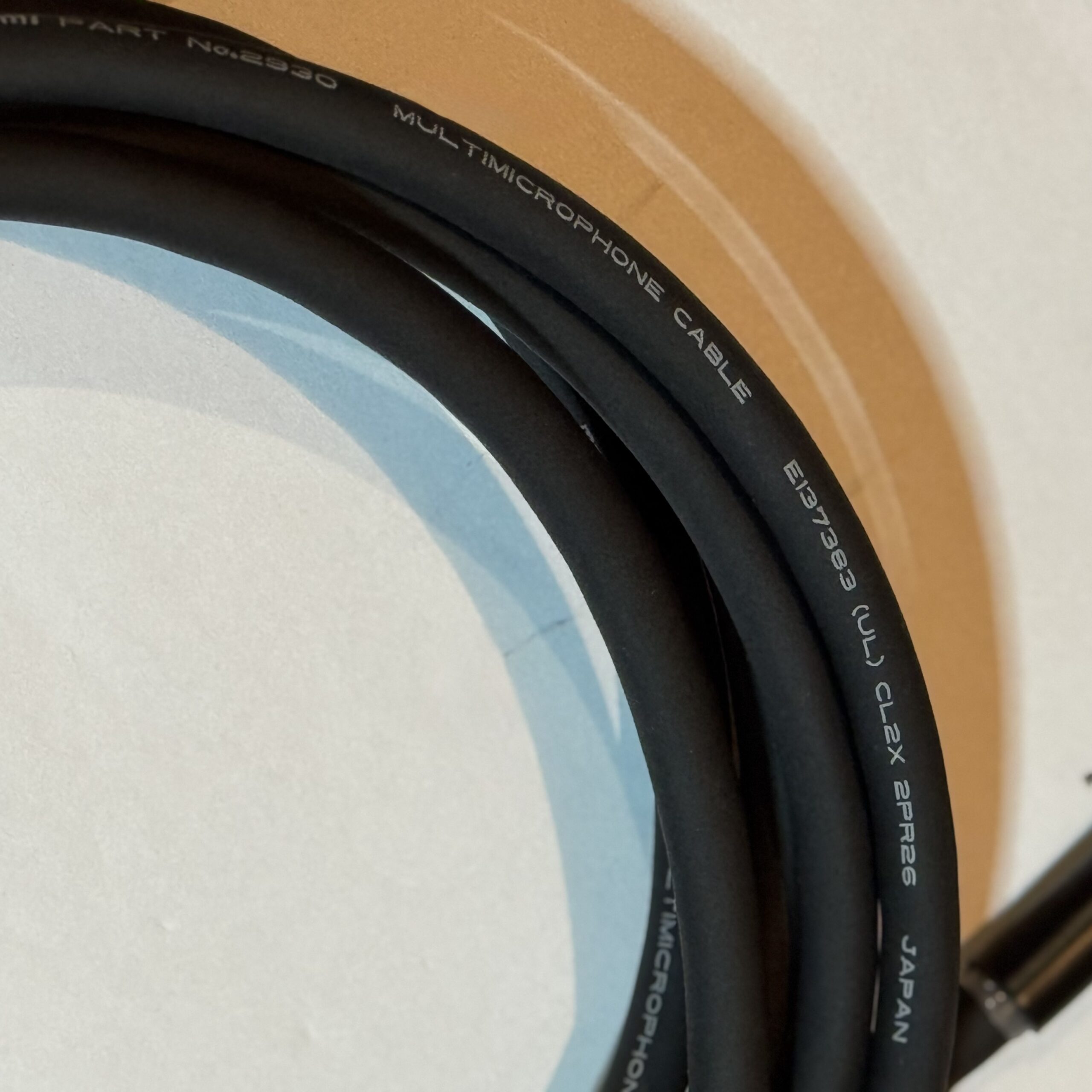

CABLE

• MOGAMI 2930 two-channel multicore microphone cable

• Two individually twisted and shielded balanced pairs

• 26 AWG conductors with XLPE insulation

• Dedicated drain wire and served bare-copper shield for each channel

• Flexible black outer jacket

• Approximate overall diameter: 7.5 mm / 0.295 in

• Made in Japan



==================================

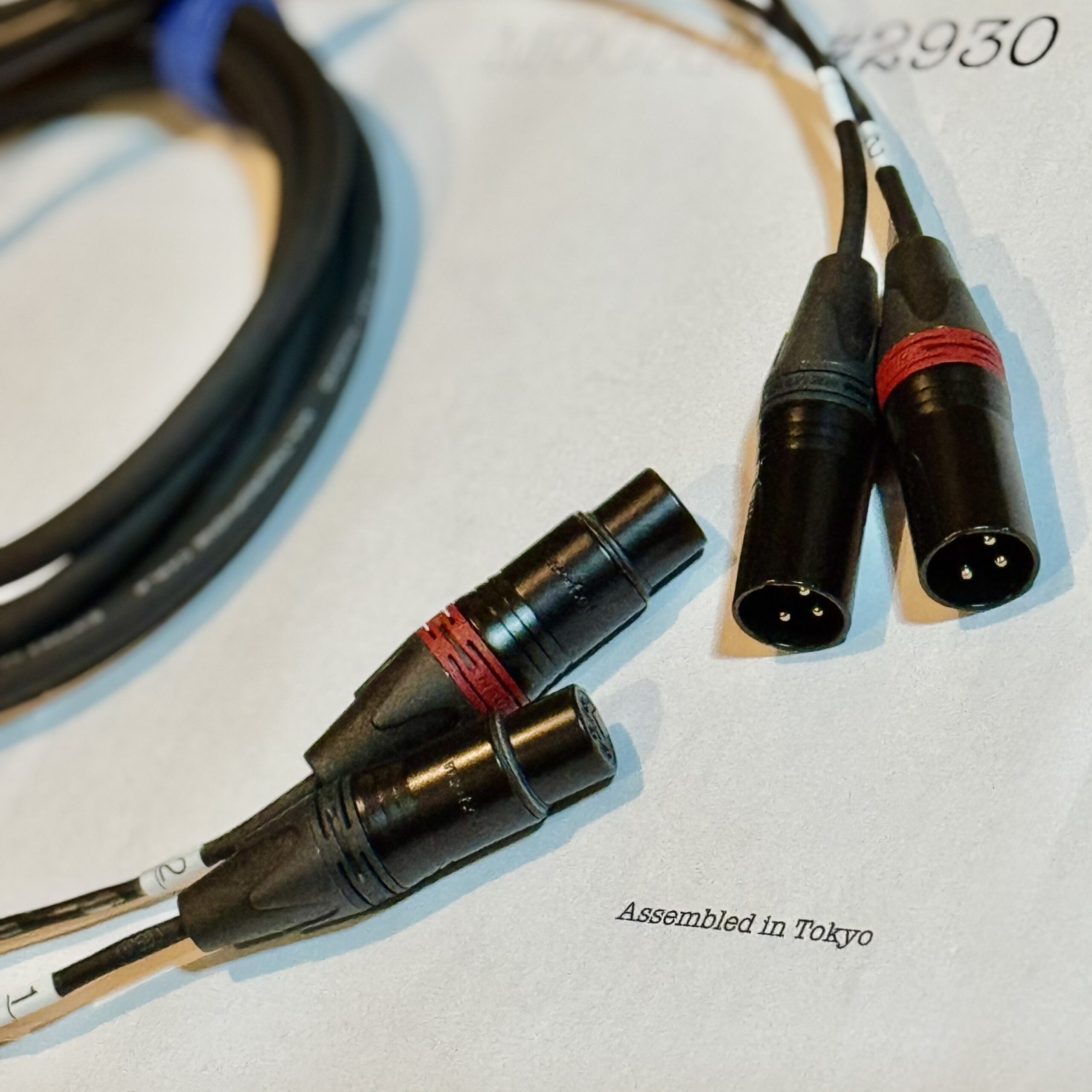

CONNECTORS

• 2 × genuine Neutrik NC3FXX-B female XLR connectors

• 2 × genuine Neutrik NC3MXX-B male XLR connectors

• Black metal housings

• Gold-plated contacts

• Genuine Neutrik black and red channel-coding rings

• 4 XLR connectors in total



==================================



WIRING AND TESTING

 • Standard balanced XLR wiring

• Pin 1 to Pin 1

• Pin 2 to Pin 2

• Pin 3 to Pin 3



• Each channel is individually checked for correct channel assignment, continuity, and shorts before shipment

Suitable for balanced analog microphone and line-level connections, including recording studios, live sound systems, stage racks, mixers, audio interfaces, microphone preamps, analog outboard equipment, and patching systems.



==================================

LENGTH

The selected cable length is the approximate finished length measured from connector end to connector end.

The fan-out sections are included within the selected overall cable length.

The selected fan-out length applies to both ends of the cable.

==================================





A NekoDensen Tokyo sticker is included with your order.

▚▞▚▞▚▞▚▞▚▞▚▞▚▞▚▞▚▞▚▞▚▞▚▞▚▞▚▞▚▞▚▞▚▞▚▞▚▞▚▞▚▞▚▞

NekoDensen Assembled in Tokyo Japan
