Description

Mogami cables are made in Japan.

Neutrik XLR connectors are made in Liechtenstein.

The 3.5 mm TRS mini connector option uses a REAN connector by Neutrik.

Assembled in Tokyo.

Delivered from the other side of the planet — no extra charges for US buyers (DDP).



This is a professional stereo breakout cable.

It is designed to split a TRS stereo output into separate Left and Right XLR male connectors.

Clean passive wiring, no buffering, no electronics — just direct signal routing.

┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉

SELECT YOUR OPTIONS ABOVE:

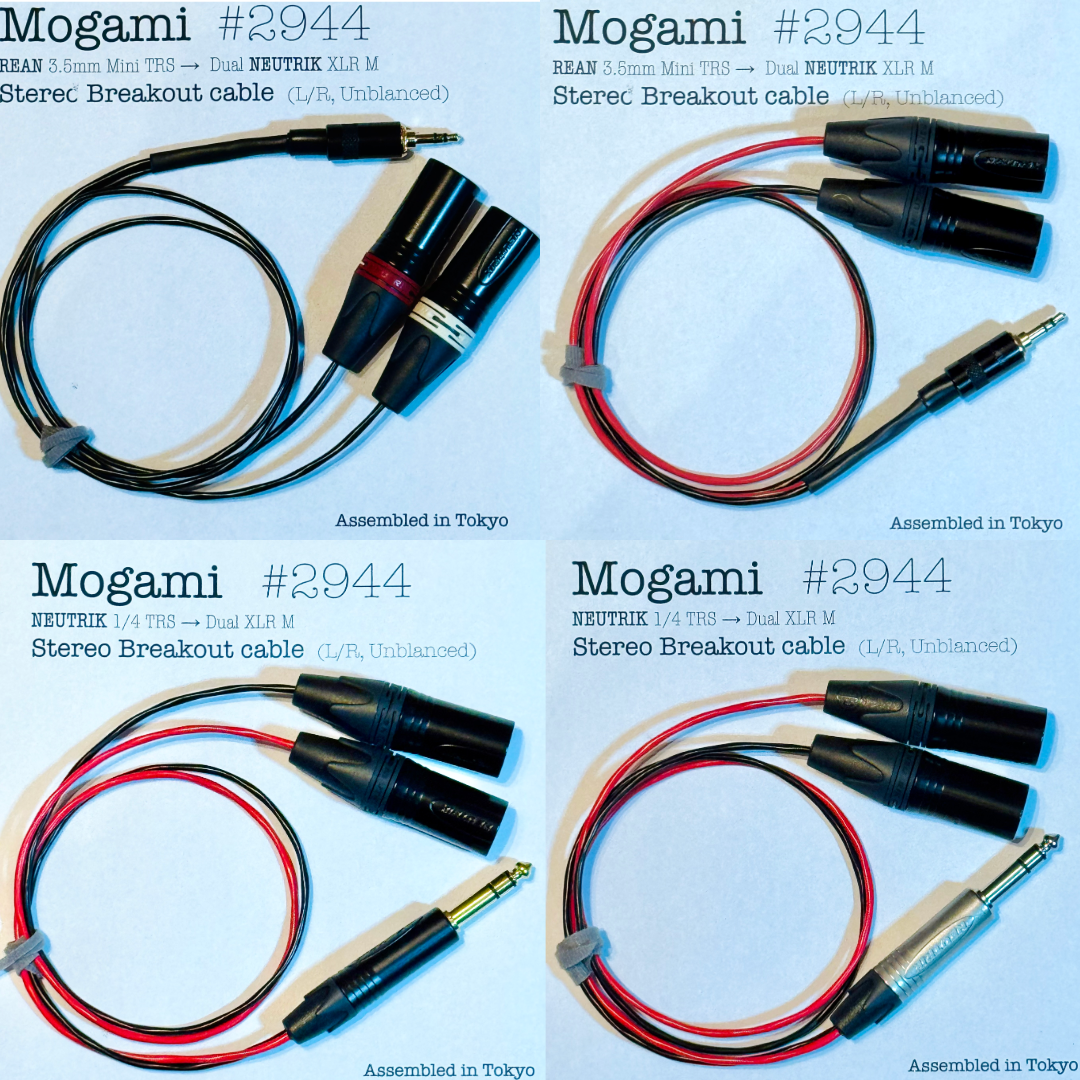

• Length:

1 ft / 2 ft / 3.28 ft (1 m) / 4 ft / 5 ft / 6.52 ft (2 m) / 10 ft (3 m)

• Connector:

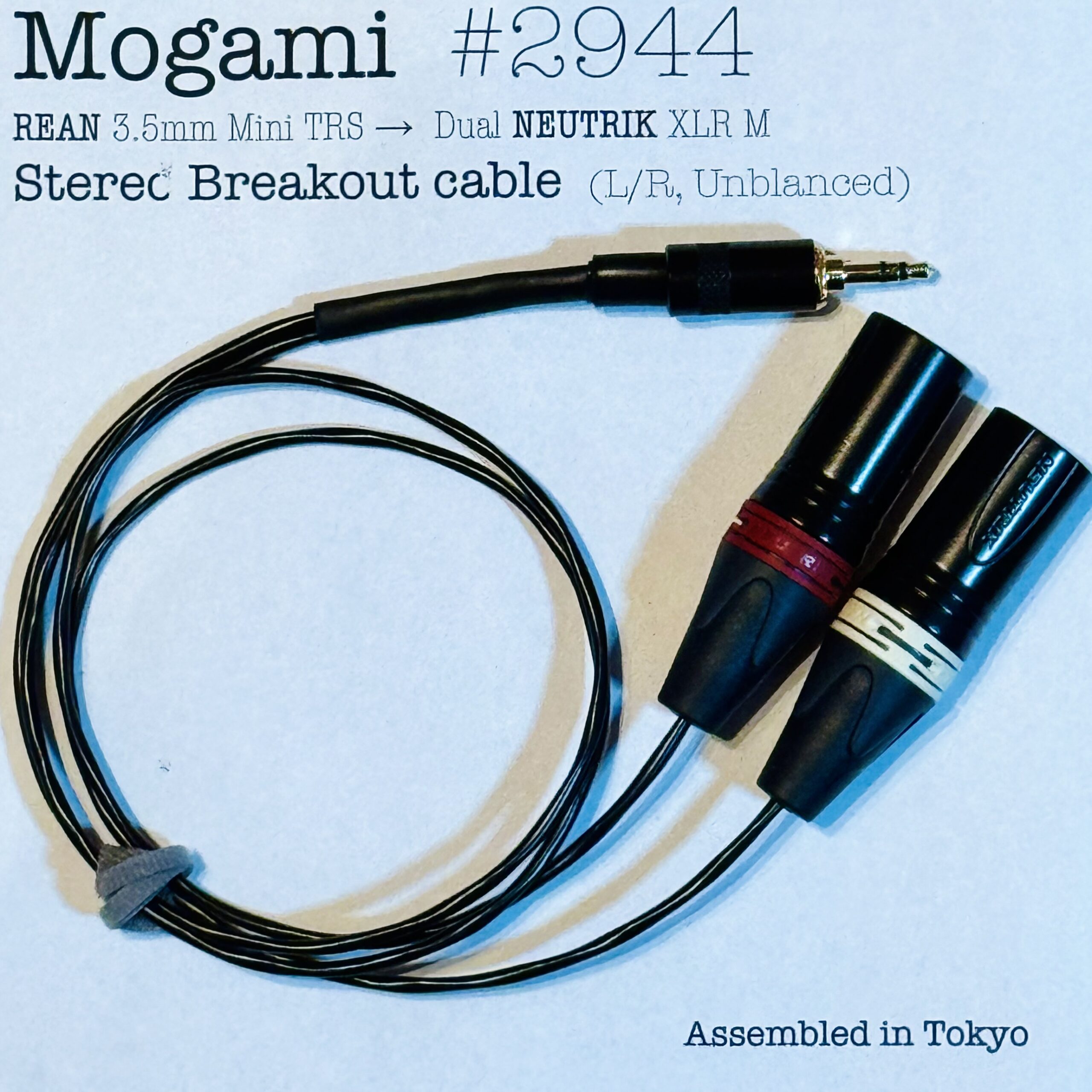

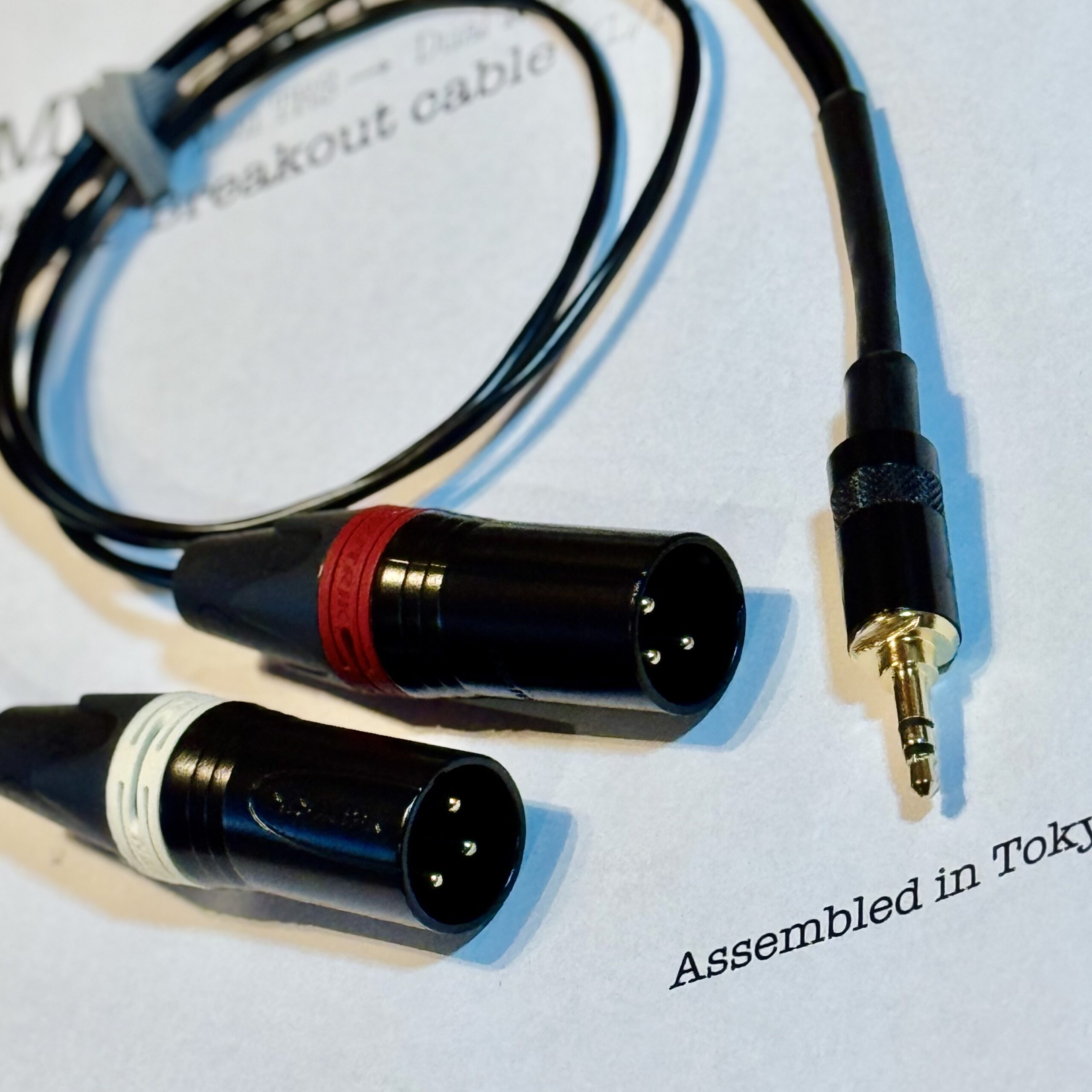

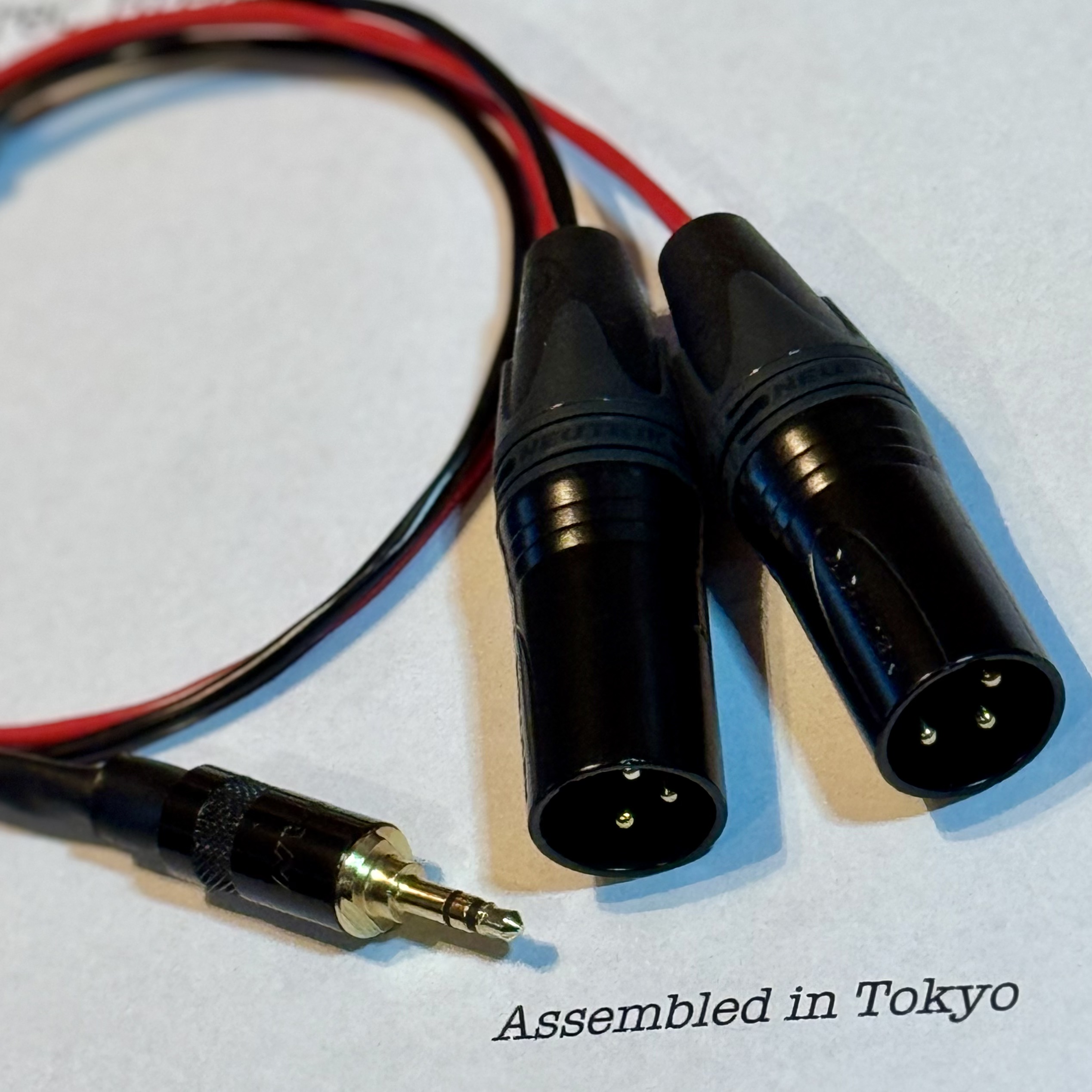

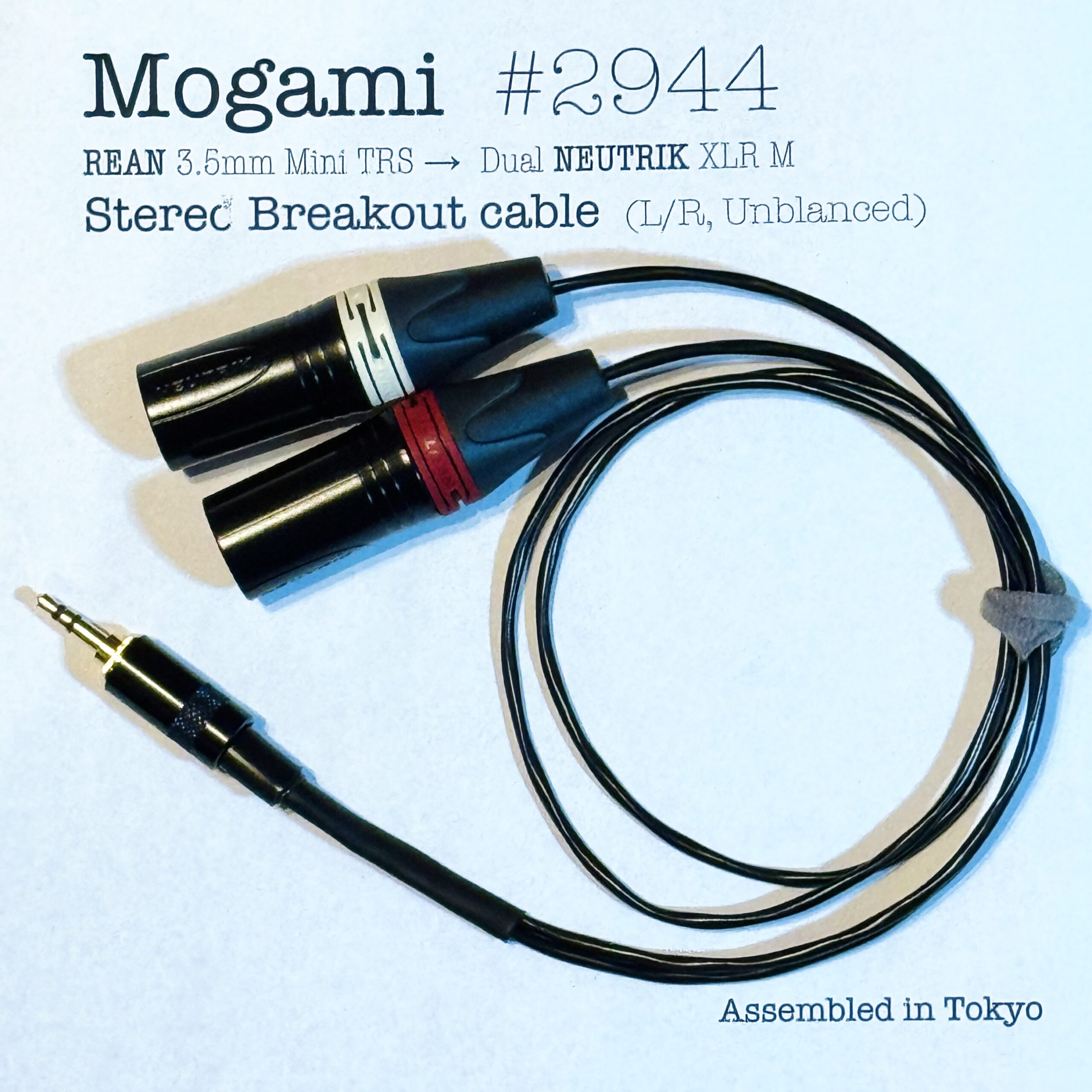

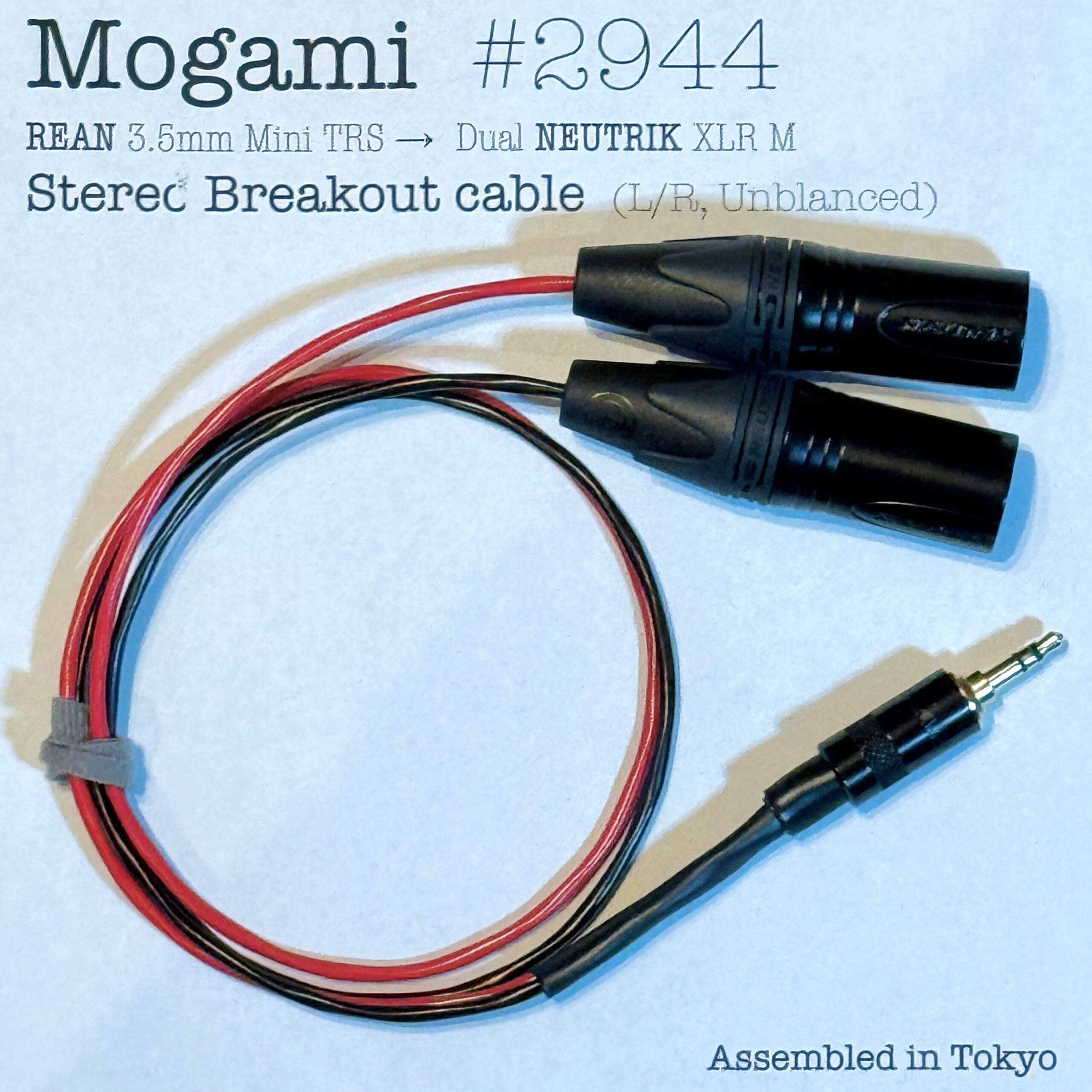

– REAN NYS231-BG-LL 3.5 mm TRS Mini → Dual Neutrik NC3MXX-B XLR Male

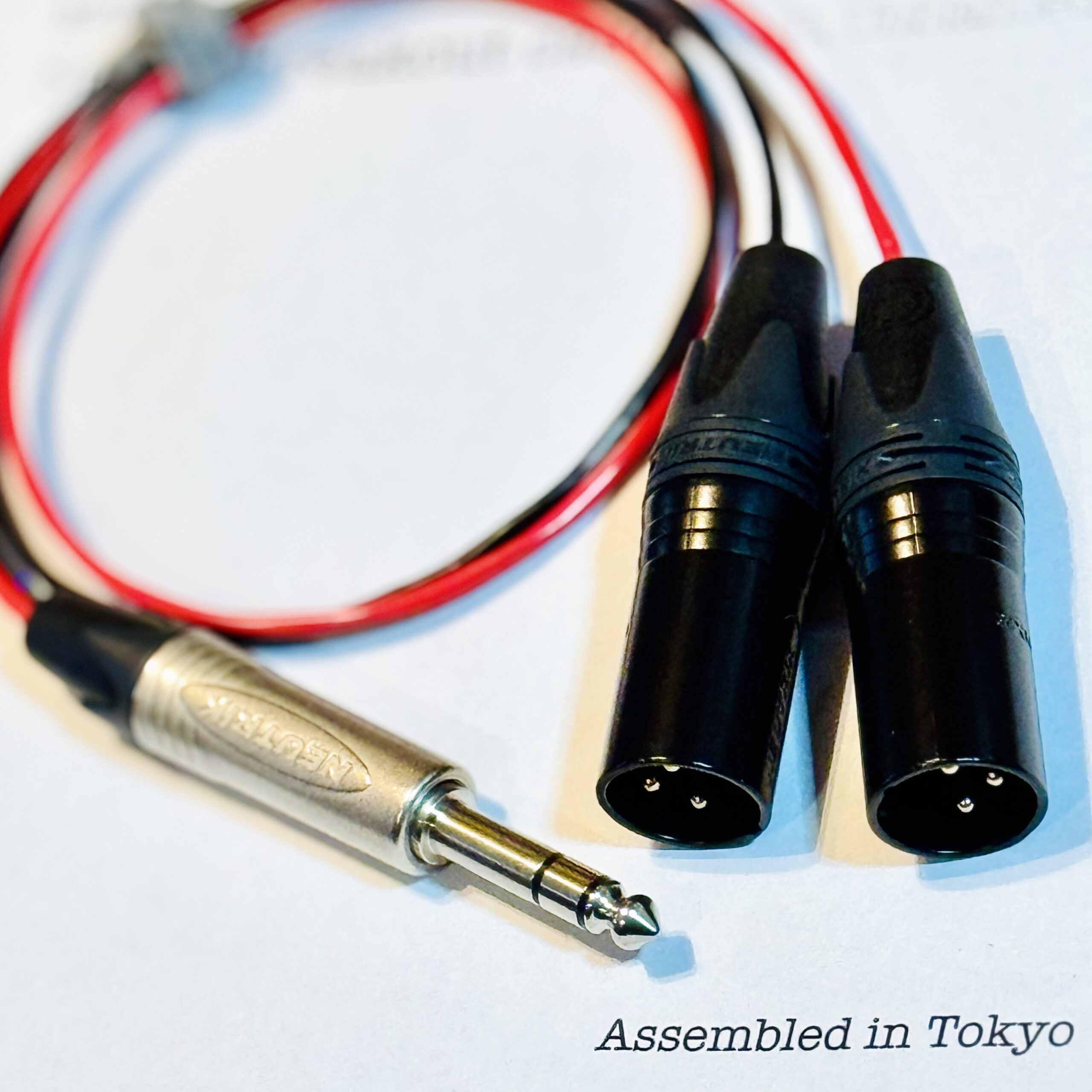

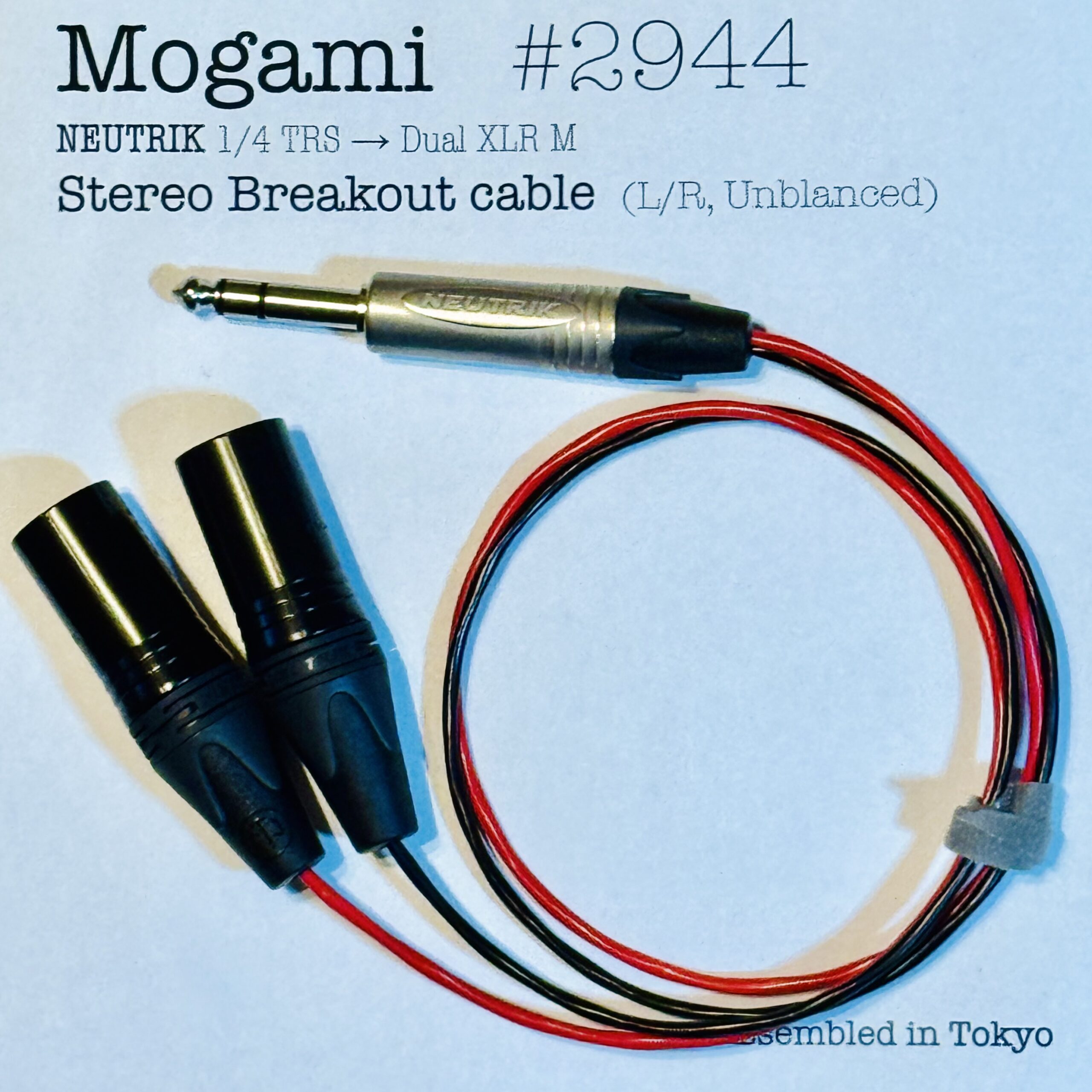

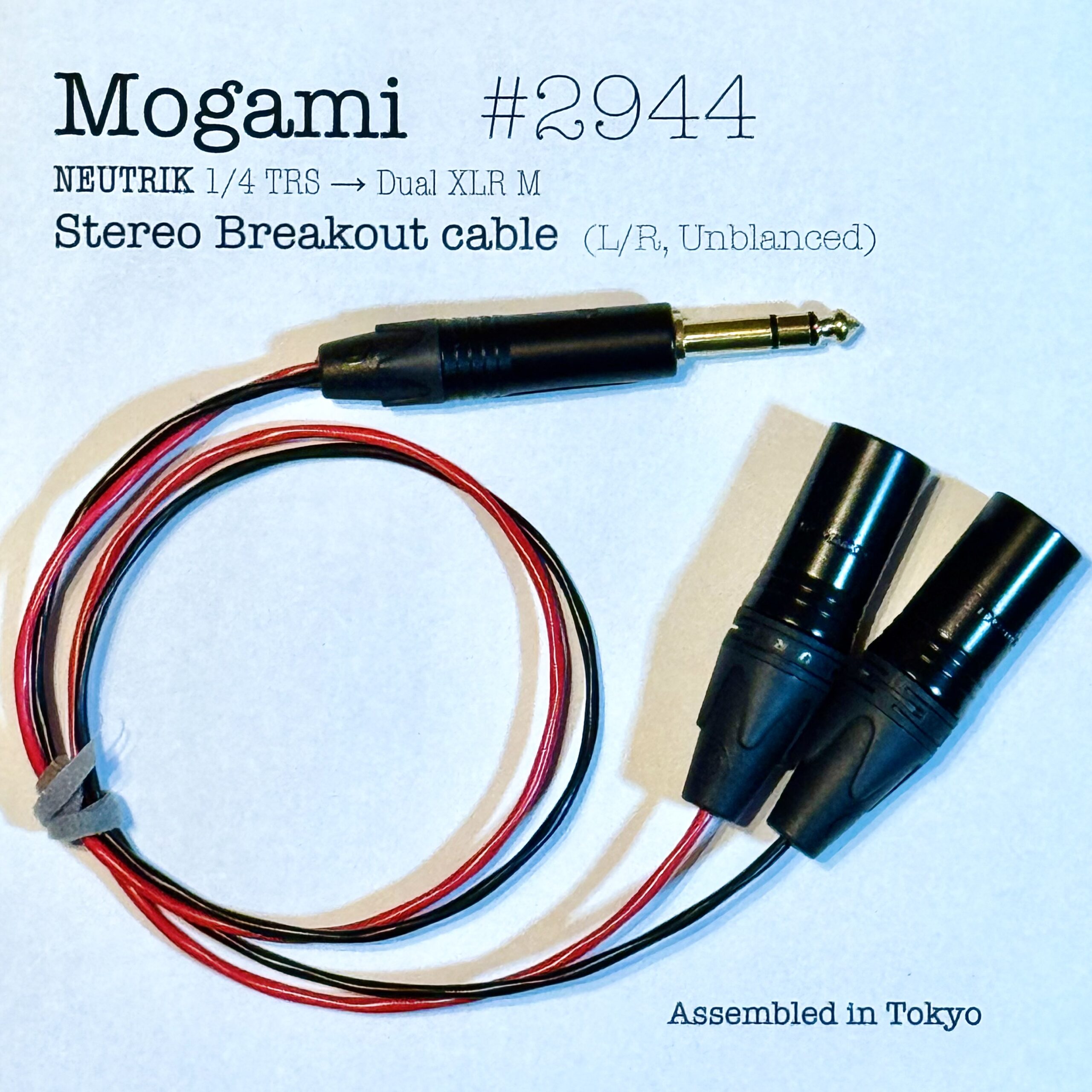

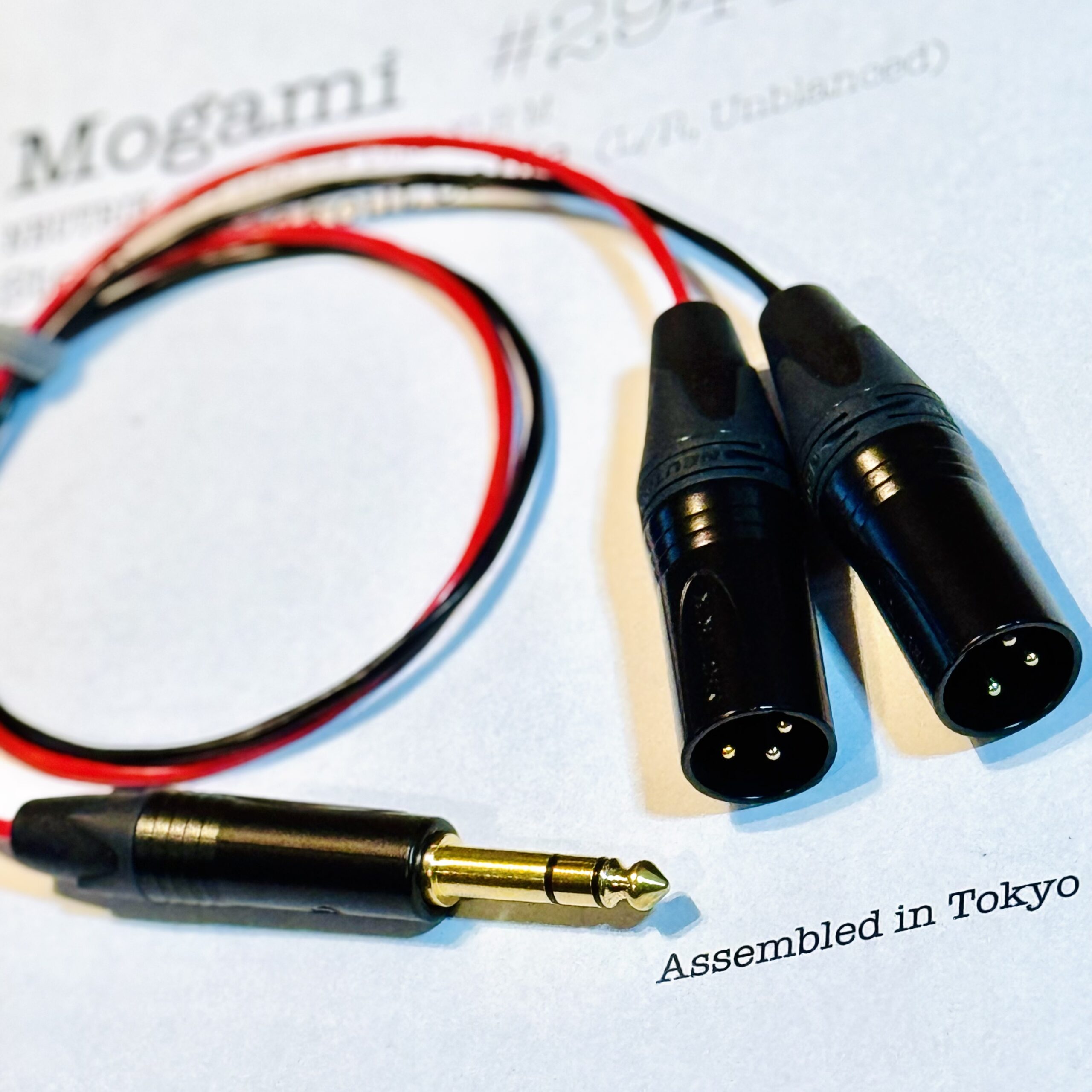

– Neutrik NP3X-B 1/4″ TRS Gold → Dual Neutrik NC3MXX-B XLR Male

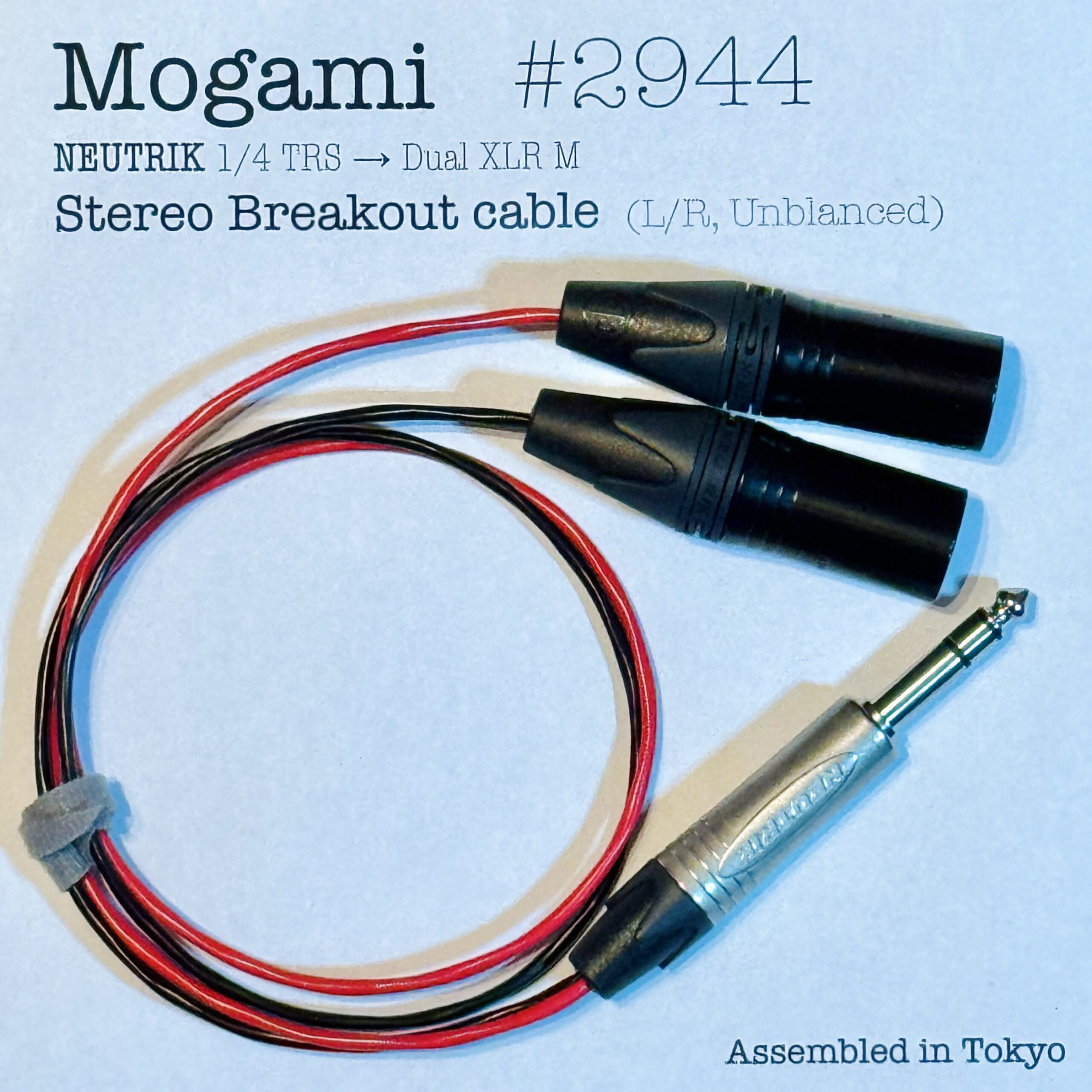

– Neutrik NP3X 1/4″ TRS Nickel → Dual Neutrik NC3MXX-B XLR Male

• Color:

– Black / Red

– Black / Black

┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉

Professional Stereo Breakout Cable

Mogami 2944 × Neutrik / REAN

Mogami 2944 TRS Stereo to Dual XLR Male Breakout Cable — Assembled in Tokyo

This cable is intended for sending a stereo TRS output to two separate XLR male connectors:

Left channel and Right channel.



Typical use cases include:

• 3.5 mm stereo output to mixer / audio interface XLR inputs

• Laptop / tablet / portable player stereo output to L/R XLR inputs

• Synthesizer / sampler / desktop audio gear stereo output to dual XLR inputs

• 1/4″ TRS stereo output to separate Left and Right XLR inputs



This is a passive breakout cable.

It does not convert an unbalanced signal into a balanced signal.

It does not provide isolation, buffering, impedance matching, or level conversion.

⸻

Wiring

TRS Tip → Left XLR pin 2

TRS Ring → Right XLR pin 2

TRS Sleeve → XLR pin 1 / ground

XLR pin 3 is tied to pin 1 for unbalanced connection compatibility.



Black / Red version:

Black side → Left channel / Tip

Red side → Right channel / Ring

Black / Black version:

Left and Right sides will be identified with marking.

⸻

IMPORTANT NOTES — Please Read

• This is a stereo unbalanced breakout cable.

It is not a balanced XLR cable.

• The TRS connector is used as a stereo L/R connector.

It is not used as a balanced mono TRS connector.

• This cable does not duplicate one balanced output into two identical balanced XLR outputs.

• Do not use this cable to combine two outputs into one input.

Passive signal combining can damage equipment or cause improper operation.

• If connecting this cable to XLR microphone inputs, please make sure phantom power is turned off.

• For best results, use appropriate input gain settings.



A headphone or line-level stereo output may be much hotter than a microphone-level input.

• The 3.5 mm option uses a standard TRS stereo mini plug.

It is not a TRRS smartphone headset connector.

Compatibility depends on the design and configuration of your equipment.

⸻

About Mogami 2944

Mogami 2944 is an ultra-slim twin cable, chosen for its flexibility, light weight, and easy routing in compact setups.

Its small diameter makes it especially suitable for:

• desktop audio setups

• compact mixers

• portable recording rigs

• synth / sampler setups

• tight studio wiring

Mogami 2944 prioritizes flexibility and compact size.

Due to its ultra-slim construction, it is best suited for light-duty signal routing and compact setups.

For applications requiring higher mechanical durability, a thicker cable may be preferable.

⸻

Build / Components

Cable:

• Mogami 2944

Connector options:

• REAN NYS231-BG-LL 3.5 mm TRS Mini

• Neutrik NP3X 1/4″ TRS

• Neutrik NC3MXX-B XLR Male

Each unit is continuity-tested before shipping.

⸻

Stickers

This product comes with a randomly selected sticker.

The stickers have no special meaning.

You may place them anywhere you like, or use them on the connector to indicate cable traceability, depending on your preference.

⸻
