Mogami 2893 Multicolor Key Signal 2-way Splitter | XLR 1 to 2 Parallel | Balanced

Description

This is a professional utility cable.

No signal summing, no buffering — just a clean parallel split.

┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉

SELECT YOUR OPTIONS ABOVE:

• Length（×1 XLR to ×2 XLR）: 1 ft / 2 ft / 3.3 ft （1 m ）/ 4 ft / 6 ft / 10 ft （3 m）/ 15 ft

• Connector:

 - 1× XLR Female (NC3FXX-B) → 2× XLR Male (NC3MXX-B)

┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉

Professional Splitter Cable

Mogami 2893 × NEUTRIK XLR

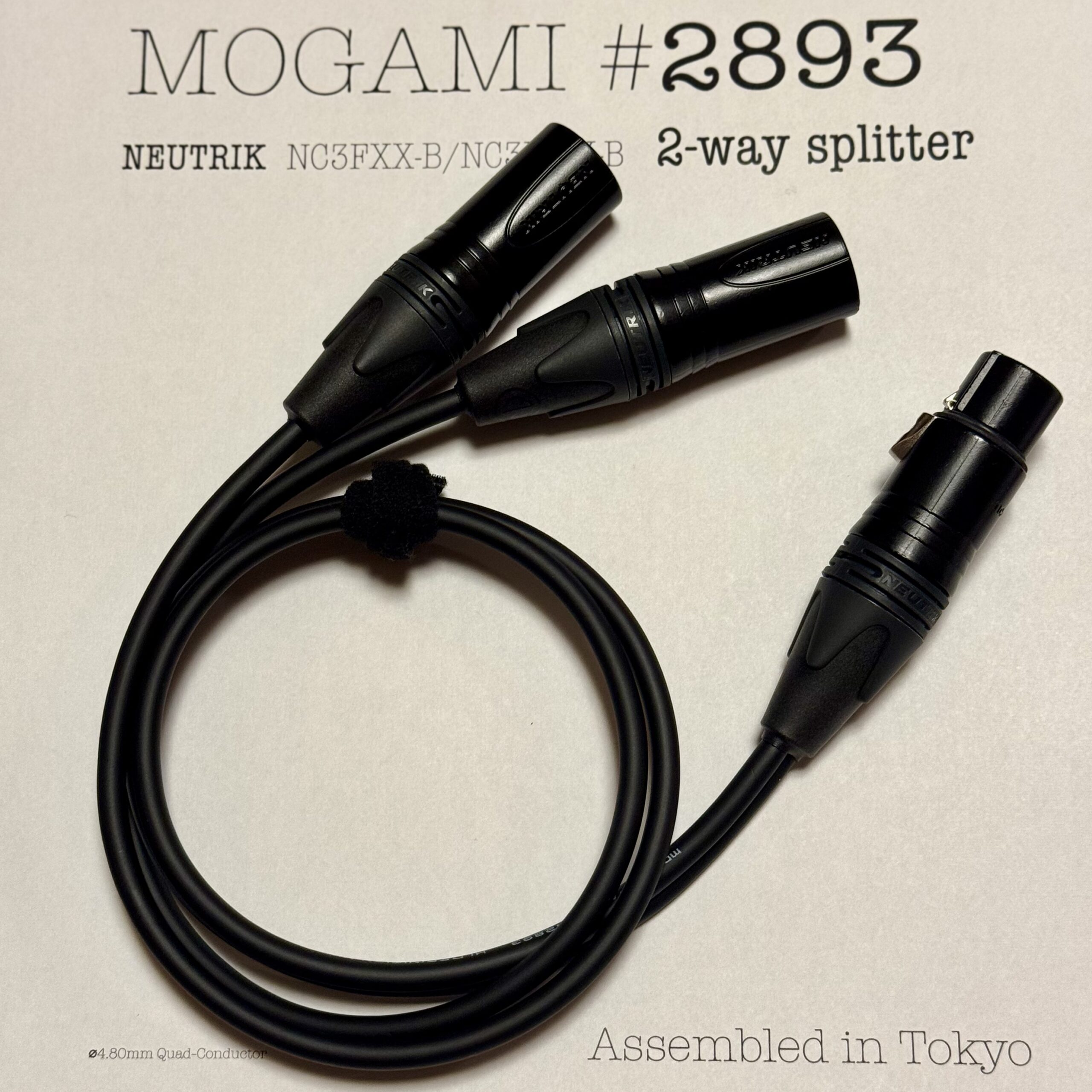

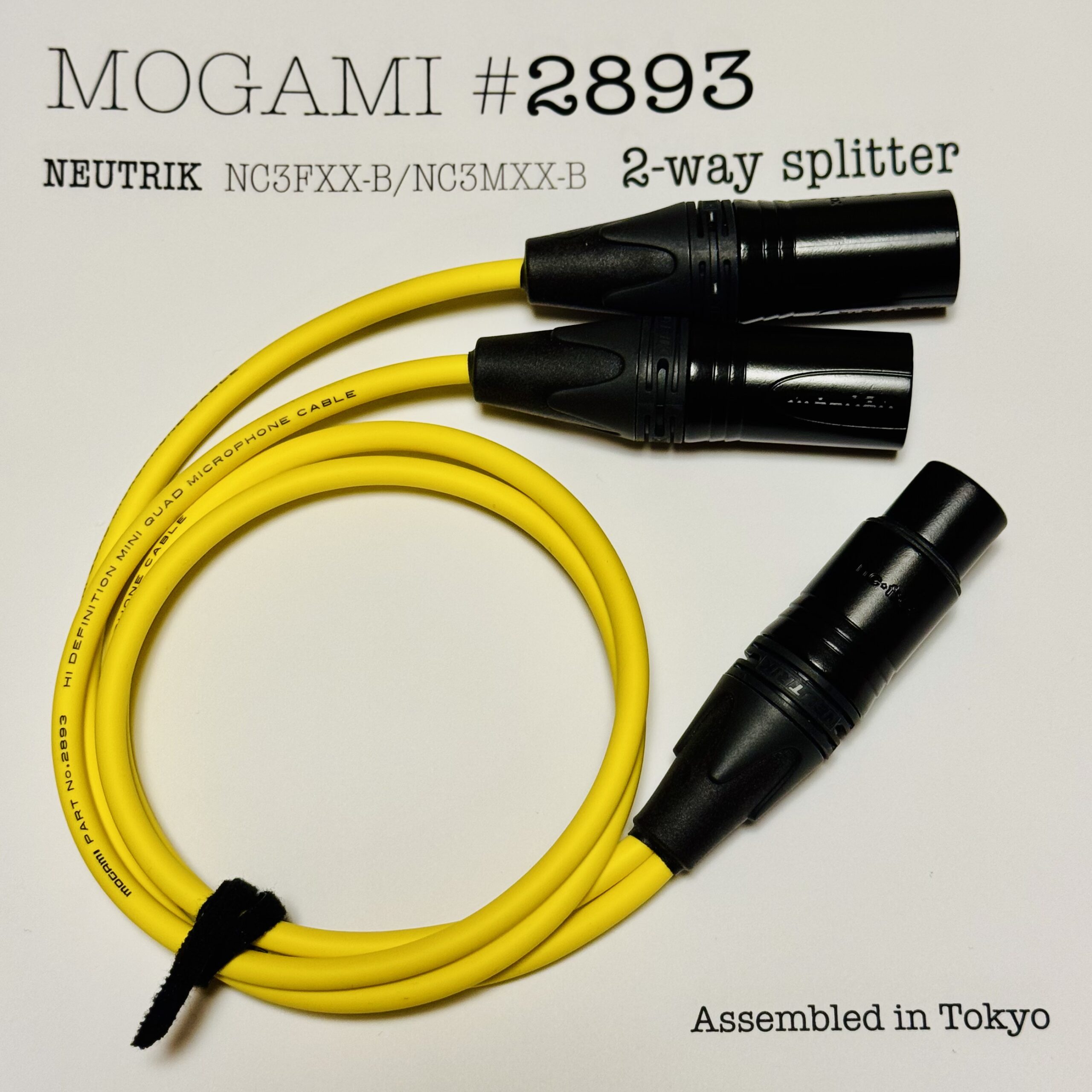

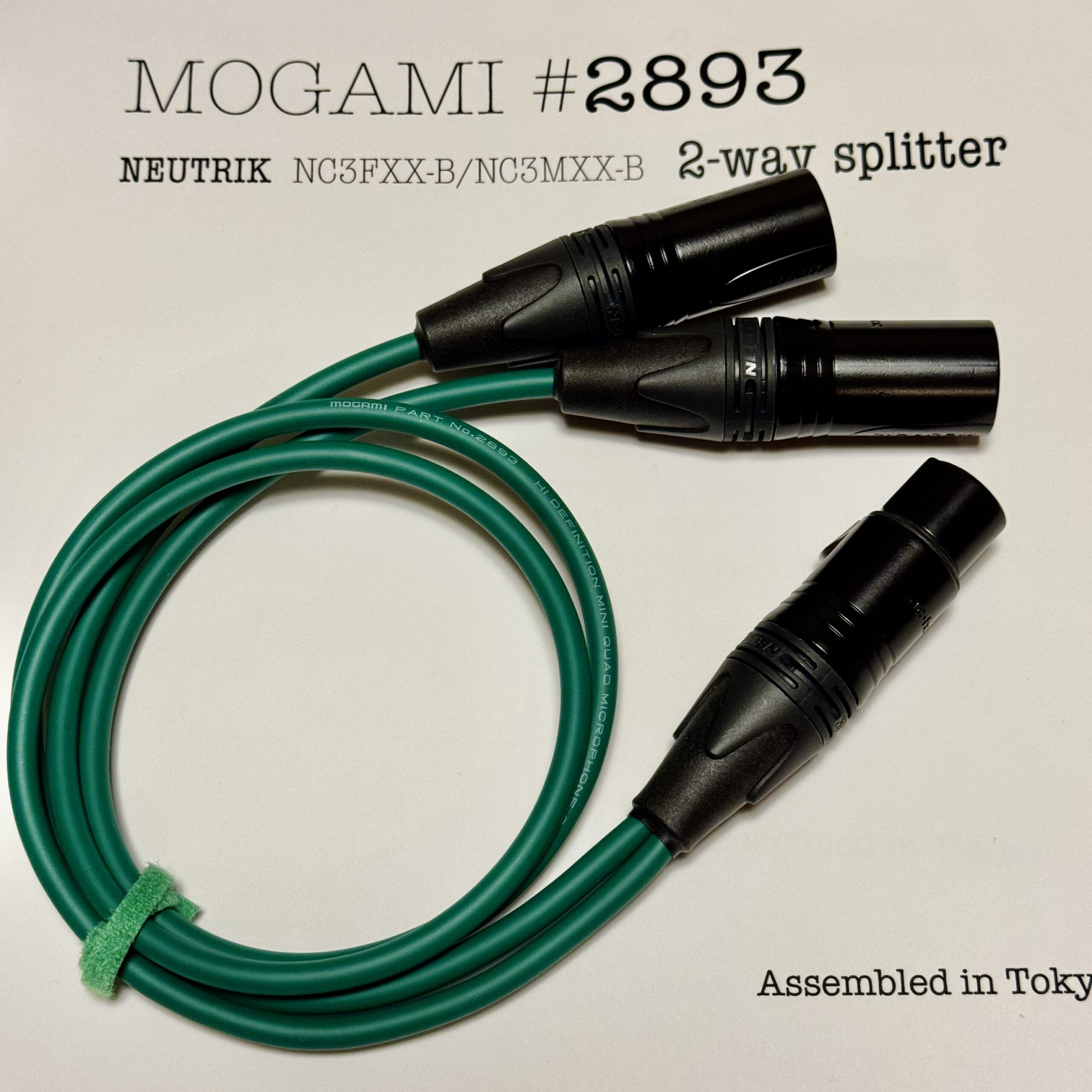

Mogami 2893 Key Signal Splitter — XLR(F) to 2×XLR(M) — Line-Level Balanced Neutrik — Assembled in Tokyo

A simple, reliable 1-out → 2-in XLR splitter for LINE-LEVEL balanced signals.

Designed for sidechain/key distribution, studio patching, and utility routing.

Mogami 2893 is used for its low capacitance, tight twist, and mechanical stability,

making it well-suited for clean, reliable line-level signal distribution.

┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉

Typical Pro Use Cases

1) Sidechain / Key distribution (line-level)

• Kick key → 2 compressors

• One send → compressor key + gate key

• Any line output → multiple processor key/trigger inputs

2) Studio utility routing (line-level)

• One line out → recorder + monitor input

• Quick A/B comparison (same source to two inputs/chains)

• Feeding a meter/analyzer while sending the same signal to another input

┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉

What This Cable Does

• Duplicates the same balanced signal to two outputs.

• XLR pinout is wired straight-through in parallel:

Pin 1 → Pin 1 (shield/ground)

Pin 2 → Pin 2 (hot/+)

Pin 3 → Pin 3 (cold/−)

• Both outputs are electrically parallel.

There is no isolation or buffering.



IMPORTANT NOTES (Please Read)

• Intended use: ONE output → TWO inputs (1 out → 2 in).

NOT for combining two outputs into one input (2 out → 1 in).



• Not intended for microphones / mic-level splitting.

Do NOT use this to split one microphone to two mic preamps.

PHANTOM POWER use is NOT supported / NOT intended.



• This is NOT a stereo-to-dual-mono splitter.

It does not separate L/R.

It duplicates the same balanced signal to two outputs.

┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉

Build / Components

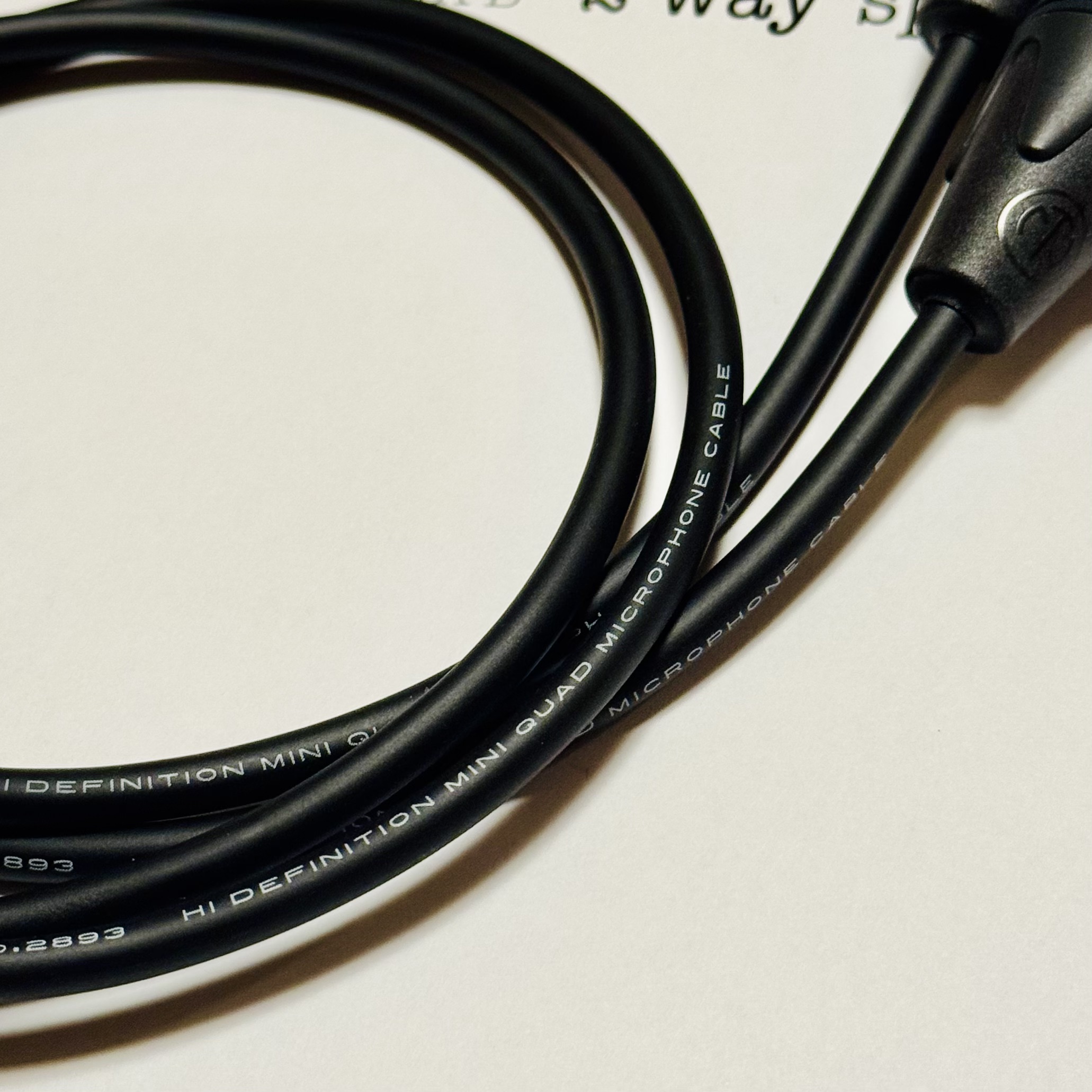

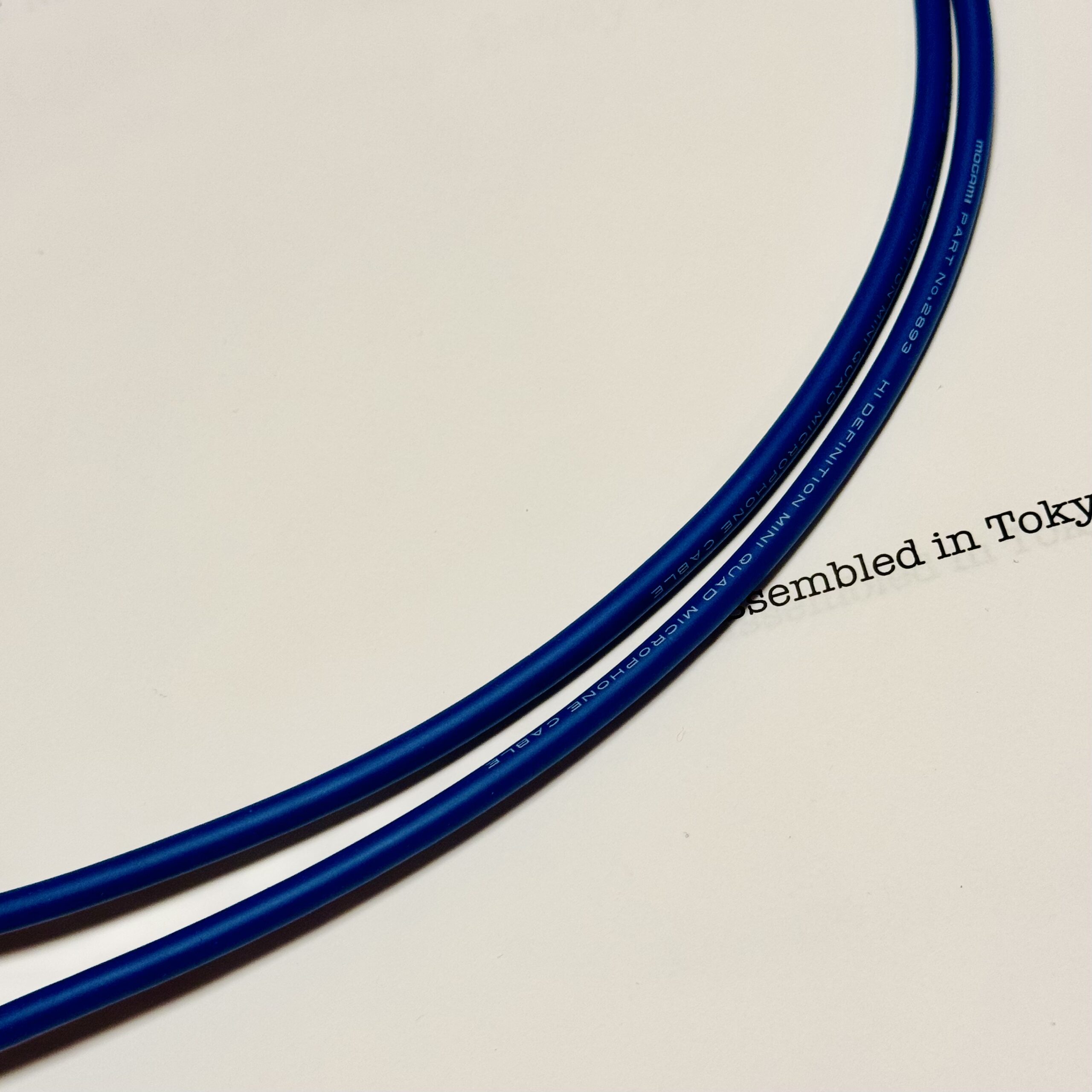

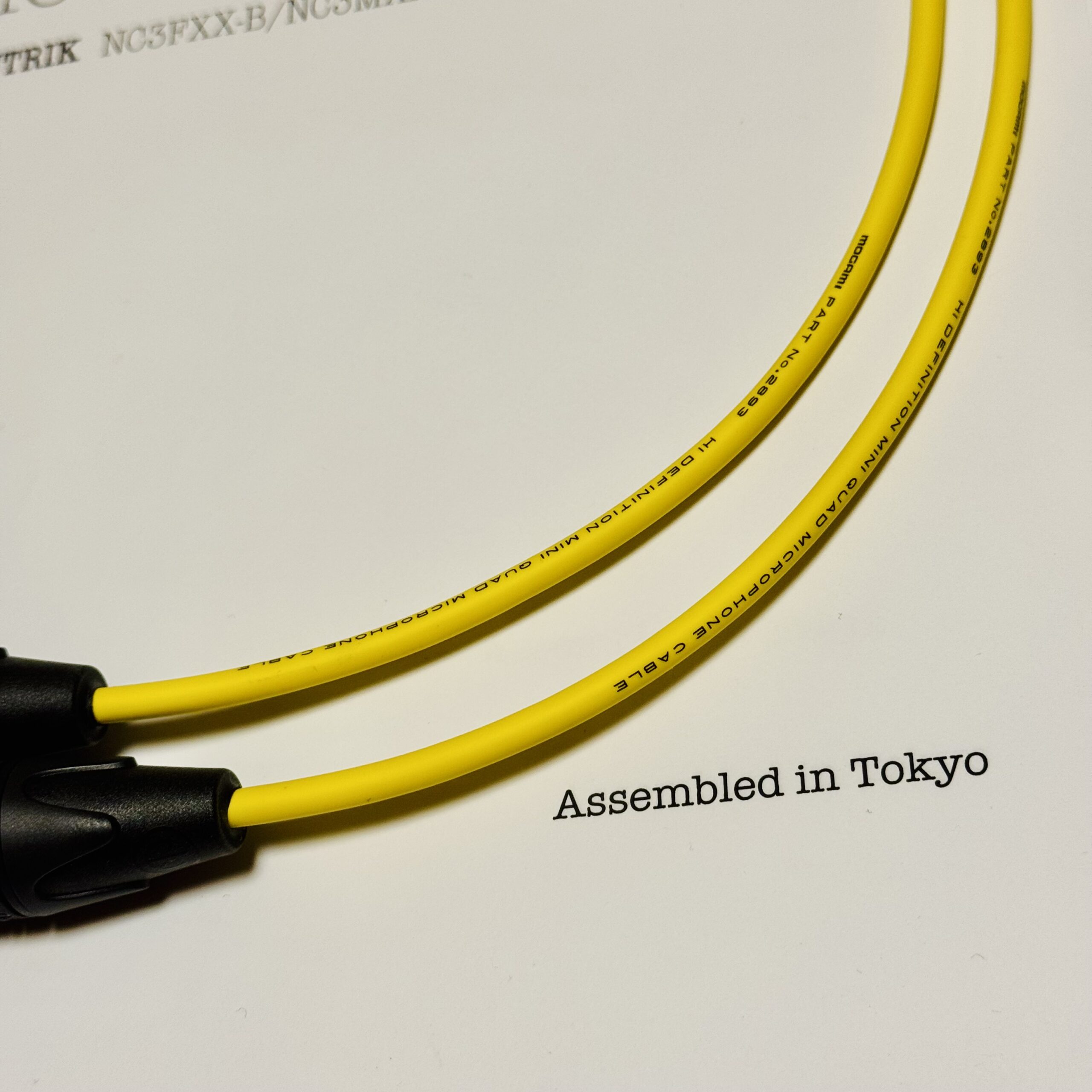

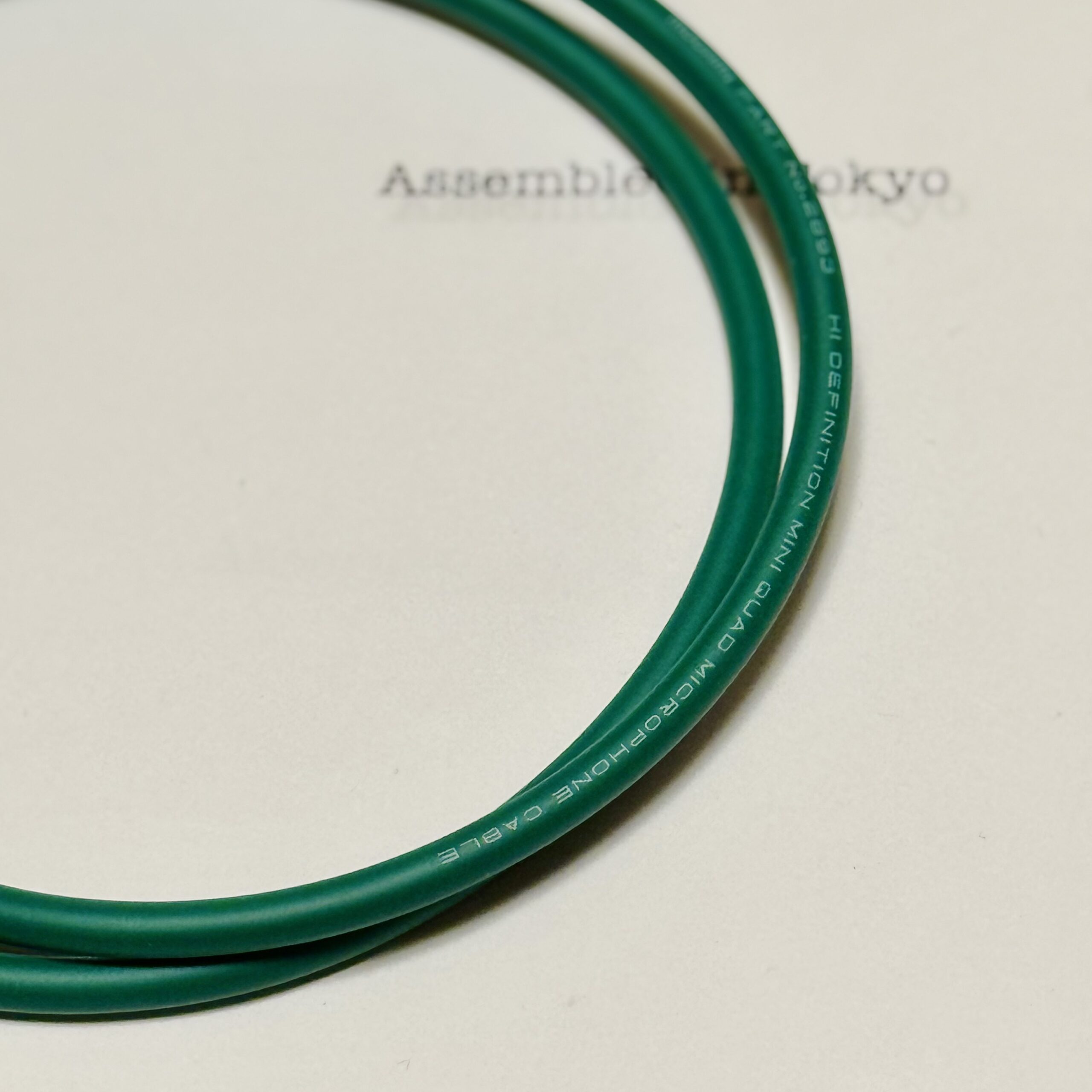

• Cable: Mogami 2893

• Connectors: Neutrik NC3FXX-B / NC3MXX-B

• Each unit is continuity-tested before shipping

┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉┉
